Solid Liquid Separation Decanter Centrifuge
High-performance decanter centrifuge for wastewater treatment and solid-liquid separation with capacity range of 250-50,000 L/H.
Water resources are essential for human survival. Human activities have led to significant environmental degradation and serious water pollution. Therefore, protecting water resources and managing water pollution have become critical priorities in modern society. Huading has extensive experience in centrifugal separation technology applied to water and wastewater treatment, enabling us to provide economical, efficient, and sustainable treatment solutions ranging from drinking water treatment to urban and industrial wastewater treatment according to diverse user requirements.
Customized Solutions
With extensive experience from thousands of engineering projects, we offer tailored solutions including:
- Drinking water treatment
- Sludge dewatering
- Sewage concentration
- Corporate wastewater treatment
- Municipal wastewater treatment
- Process water treatment
- Extraction of useful substances from process water and sludge
Product Features

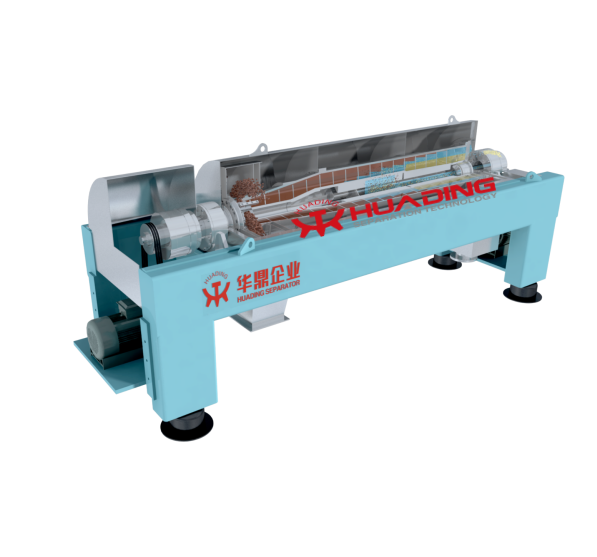

The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section featuring integrated outlets for both solids and the liquid being removed.
Quality Assurance
- JB/T502-2015 Chinese national standard of decanter centrifuge
- 2006/42/EC Machinery Directive
- 2014/35/EU Low voltage Directive
- 2014/30/EU Electromagnetic compatibility Directive
- Quality management system of ISO9001-2000
Technical Specifications
| Parameter |
Specification |
| Bowl Diameter |
186-720mm |
| Bowl Length |
744-3000mm |
| Bowl Speed |
2000-6000rpm |
| G-Force |
1600-4000g |
| Weight |
600-8000kg |
| Primary Motor |
5.5-132kw |
| Secondary Motor |
2.2-45kw |
| Material |
AISI 304/316/316L/Duplex Steel |
| Noise |
<88db |
Drive System Options
One Motor Drive
This simple design offers cost-effective purchase and operation. One motor drive systems are used when solids volume is constant, solids are easy to convey, and requirements for residual water content in solids are not stringent. The input shaft is driven by the main motor via a belt drive, generating differential speed as a function of bowl speed and gear transmission. Speed can be easily adjusted by replacing belt pulleys.
Two Motor Drive
This system enables cost-effective differential speed regulation under good operating conditions with wide regulating ranges. The secondary motor sets the input shaft in motion, generating differential speed as a function of bowl speed and gear transmission. Differential speed can be easily regulated by changing motor speed. Two motor drives are used when solid volumes fluctuate significantly, solids are conveyed under difficult conditions, and stringent requirements apply to residual water content.
Hydro Drive
Similar to the two motor drive but with different design. Instead of mechanical gear, a rotating hydromotor is installed and supplied with hydraulic regulation by a pump unit. Since differential speed is proportionate to conveyed oil quantity, automatic regulation can be provided without problems.
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation from the station to our facility.
How do you guarantee the quality of your products?
Our company has over 60 years of experience and implements strict quality policies. Advanced processing machines ensure part accuracy, workers are certified, parts undergo multiple processing stages, and transmission/electrical components use internationally renowned brands. Comprehensive testing and inspection occur throughout production.
What payment methods does your company accept?
We accept most payment methods, with T/T being the primary method.
How long is the warranty period of your products?
12 months warranty period.
I have not done business with your company before, how can I trust your company?
Our company has been on for 14 years and provides various certifications to establish trust.
What are your company's shipping terms and delivery time?
Each unit is customized with delivery time of 60-90 days.
Do you give any discount?
We will make every effort to help you get the best possible deal.
